Divisible duct seals 40mm

Retroceder

Suitable for gas and watertight sealing of 40mm HDPE ducts, which contain mini ducts and / or (fibre optic) cables.

The modular system will guarantee easy installation of various different cable and duct configurations. Our system is divisible so can be applied at installation or afterwards.

The rubber inserts can be custom designed for your specific needs and configuration and will contain (temporary) blind plugs to make the system more flexible at the installation site.

Descargar hoja de producto
  • Gas and watertight ≥ 0,25 bar
  • Suitable for retrofitting
  • Easy installation
  • Slim design
  • Includes cores of the recesses
  • Other versions available upon request

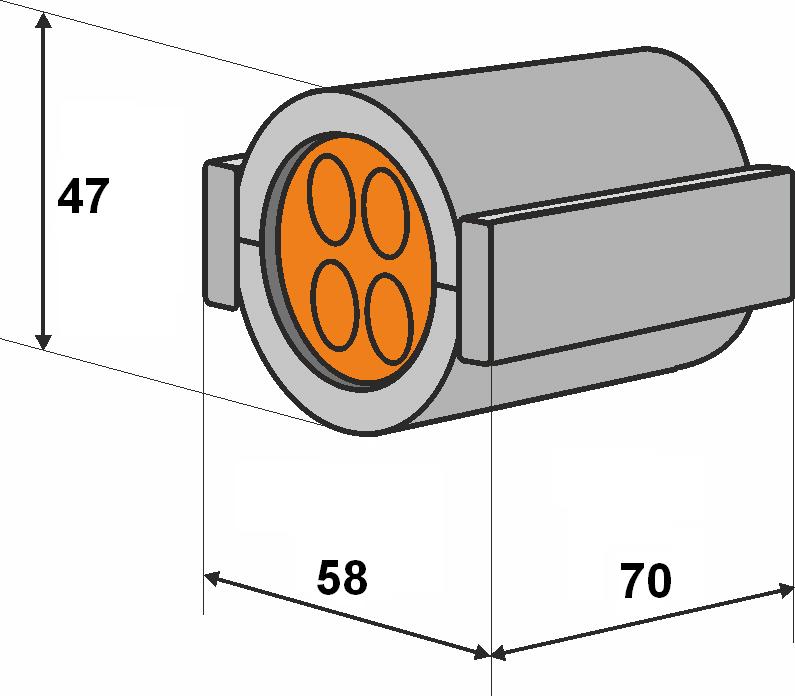

40mm ductsealing

Plastic scales glassfibre reinforced
Closing key glassfibre reinforced
Sealing plug EPDM
Sealing up to 0,25 bar
Pull-out force duct seal vs duct ≥ 1000N
Más Información
Más información

Contents

  • Plastic scales (2 items)
  • Closing keys (2 items)
  • Synthetic rubber plug for cavity shapes (1 item)

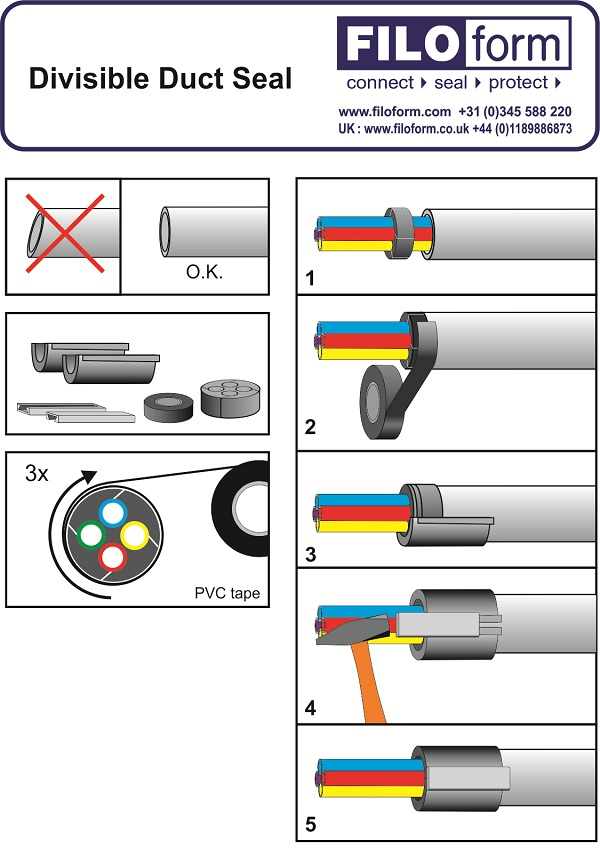

  • Illustrated installation instructions

Divisible duct seal

Home page product list No

Click here to download the video.

Solicitar productos
Elementos de artículos agrupados
SKU Nombre del producto

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Cantidad
822681F Duct seal HDPE 40mm/2x7+1x12mm Order unit 10 pcs/carton
822696F Ductseal HDPE 40/7x7+7x3mm Order unit 10 pcs/carton
822621F Duct seal HDPE 40/8x7mm+1x12mm Order unit 10 pcs/carton
822624F Duct seal HDPE 40/ 10 x 7 mm Order unit 10 pcs/carton
822642F Duct seal HDPE 40/1x10mm+3x7mm Order unit 10 pcs/carton
8227014F Ductafdichtset HDPE 40/1x10mm+3x7mm+1C5-12mm Order unit 10 pcs/carton
822662F Duct seal HDPE 40/3x10mm+1C8-18mm Order unit 10 pcs/carton
822694F Ductseal HDPE 40/4x10+1C6-14mm Order unit 10 pcs/carton
822690F Ductseal HDPE 40/4x10+4x7 mm Order unit 10 pcs/carton
822640F Duct seal HDPE 40/ 5 x 10 mm Order unit 10 pcs/carton
822659F Duct seal HDPE thin wall 40/7x10mm Order unit 10 pcs/carton
8227003F Ductseal HDPE 40/1xC11-16-22mm Order unit 10 pcs/carton
8227013F Ductafdichtset HDPE 40/2x12mm+1xC5-16mm Order unit 10 pcs/carton
822663F Duct seal HDPE 40/2x12mm+1C8-18mm Order unit 10 pcs/carton
822625F Duct seal HDPE 40/ 4 x 12 mm Order unit 10 pcs/carton
822688F Duct seal HDPE 40mm/1x14mm Order unit 10 pcs/carton
822643F Duct seal 40/3x14mm Order unit 10 pcs/carton
822698F Ductseal HDPE 40/1x24mm Order unit 10 pcs/carton
822623F Duct seal HDPE 40/24x4mm Order unit 10 pcs/carton
8227016F Duct seal HDPE 40/12x5mm Order unit 10 pcs/carton
8227008F Ductseal HDPE 40/1xC5-11mm Order unit 10 pcs/carton
Solicitar productos
