MD1 FttH
Suitable for ducts with a diameter of 16mm up to 32mm and cables or pipes up to 25mm.
- Universal, adecuado para microductos y microcables hasta 4-12mm (Código 80219) y 14-20mm (Código 80221).
- Excelente sellado tanto en el orificio como dentro de la carcasa gracias a la resina expansiva
- Resistente a gases y agua hasta 2,0 bar
- Montaje sencillo y rápido sin necesidad de herramientas especiales
- Evitar las grandes perforaciones y su elevado coste

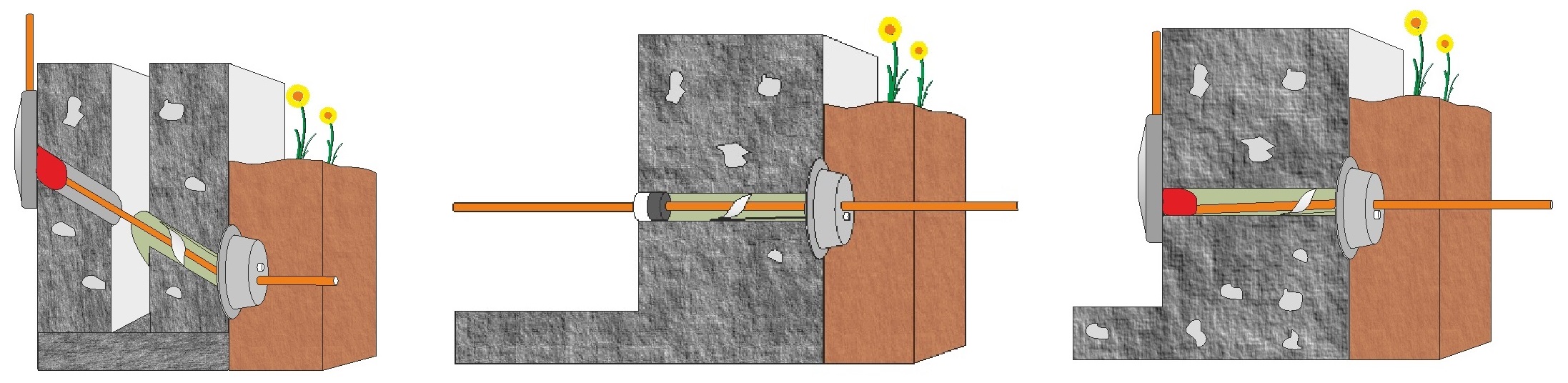

- También adecuado para conductos de paso diagonales.
- Adecuado para el sellado de perforaciones en los tipos de pared más comunes e impermeabilizadas según la norma DIN 18533
- Cumple con la norma DIN 18322 sobre obras de cableado subterráneo: las entradas de cables y tuberías de los edificios deben ser resistentes a los gases y al agua.
- Alta resistencia mecánica, resistente a movimientos de tierra, golpes y vibraciones
- Un juego completo para el sellado de un conducto
- Más de 30 años de experiencia operativa, usado en varias redes de telecomunicaciones
Tabla de configuración MD1-FttH
| Diámetro cable/subduct | Diámetro conducto | Código |
| 4mm - 8mm | 16mm | 80219 |
| 10mm - 12mm | 20mm | 80219 |
| 14mm - 20mm | 32mm - 40mm | 80221 |
Set contents
| Item nr. 80219 |
Item nr. 80221 |
| MD1-FttH 1x4-12mm | MD1-FttH 1x14-20mm |
|
|
| Item nr. 80219.3 |
Item nr. 80219.6 |
| SET - MD1-FttH + FttH entry 90° for 1x4-8mm | SET - MD1-FttH + FttH entry 90° for 1x10-12mm |
|
|
Dimensions cap
| Outer diameter | Inner diameter | Height |
| 106 mm | 72 mm | 24 mm |
Specifications expanding resin
Art.nr. 80219 - 2K syringe 25ml, PU expanding resin type 2235
| Properties | Unit | Value |
| Start time expansion | seconds | 20 |
| End time expansion | minutes | 2 |
| Curing time | minutes | 5 |
Art.nr. 80221 - 2K mixing pouch 80gr., PU expanding resin type 2566
| Properties | Unit | Value |
| Start time expansion | seconds | 60 |
| End time expansion | minutes | 5 |
| Curing time | minutes | 10 |
General
| Properties | Unit | Value |
| Compressive strength | N / cm² | > 60 |
| Density | kg / m³ | > 50 |
| Gas and water tightness 1,0 bar | 30 days | no leakage |
| Gas and water tightness 2,0 bar | 24 hours | no leakage |
| temperature Cycles, -20°C tot +40°C | 10 consecutive cycles | no leakage |
| Vibration test 10 Hz/amplitude 3mm | 240 hours | no leakage |
| axial tensile force | diameter x 10 N | no leakage |
| Pull out strenght FttH cable / microduct | N | > 400 |
| Chemical resistance | ||
| 0,1N Na₂SO₄ | 30 days | no degradation |
| 0,1N NaCl | 30 days | no degradation |
| 0,1N H₂SO₄ | 30 days | no degradation |
| 0,1N NaOH | 30 days | no degradation |
| Diesel | 30 days | no degradation |
| Gasoline | 30 days | no degradation |
| Resistance | ||
| Molds | good | |
| Rodents | good |
Dimensions cap
| Item number | Outer diameter | Inner diameter | Height |
| 80221 | 104 mm | 72 mm | 30 mm |
| 80223 | 132 mm | 106 mm | 45 mm |
Specifications expanding resin
| Properties | Unit | Value |
| Start time expansion | seconds | > 95 |
| End time expansion | minutes | 15 |
| Compressive strength | N / cm² | > 100 |
| Density 1,0bar | 30 days | no leakage |
| Density 10m water column | 30 days | no leakage |
| Volume consistency | cube 10 x 10cm | no change |
| temperature Cycles, -20°C tot +40°C | 10 consecutive cycles | no leakage |
| Vibration test 10 Hz/amplitude 3mm | 240 hours | no leakage |
| axial tensile force | diameter x 10 N | no leakage |
| Resistance to bending | cables 45° in 2 directions >250mm | no leakage |
| Expansion polyurethane foam in pipe | cm | < 40 |
| Chemical resistance | ||
| 0,1N Na₂SO₄ | 30 days | no degradation |
| 0,1N NaCl | 30 days | no degradation |
| 0,1N H₂SO₄ | 30 days | no degradation |
| 0,1N NaOH | 30 days | no degradation |
| Diesel | 30 days | no degradation |
| Gasonline | 30 days | no degradation |
| Resistance | ||
| Molds | good | |
| Rodents | good | |
| Shelf life | months | minimal 30 |
