Y Branch-off joint

Retroceder

Cuenta
Configuración
  • Low voltage 0,6/1 (1,2) kV, Telecommunication and Signalisation
  • Inside / outside underground, above ground, underwater, in cable ducts
Descargar hoja de producto
Cargando...
  • Cable joint type tested according to: EN 50393:2006-11
  • Resin type tested according to: IEC60455-3-8:2013
  • Hydrolysis resistant polyurethane resin in transparent 2-component bag
  • Strong transparent plastic shells
  • Excellent resistance against UV, chemicals and alkalines
  • Fully waterproof
  • Installation instructions and protective gloves inclusive
  • Very easy and quick installation
  • Connectors and/or earthing kits available on request
  • Other shell size dimensions available on request

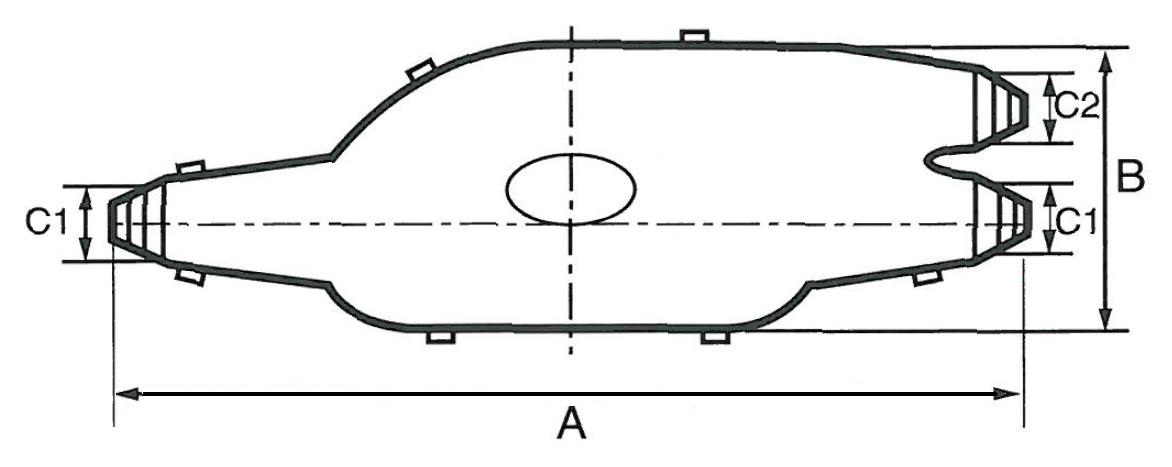

CB0

A = 190mm
B = 60mm

C1 =
min. 10mm
max. 20mm

C2 =
min. 10mm
max. 20mm

Más Información
Más información

Download: Mixing instructions

Instructions
Home page product list No
Solicitar productos
Elementos de artículos agrupados
SKU Nombre del producto Diámetro del cable (mm) Dimensiones (mm)

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

 Order unit 		Cantidad
80169 Y Branch-off joint 4 x 2,5mm² Ø 10 - 20 190 x 60 x 47 Order unit per piece
801692 Y Branch-off joint 4 x 6mm² Ø 12 - 24 220 x 76 x 77 Order unit per piece
801694 Y Branch-off joint 4 x 16mm² Ø 09 - 25 335 x 120 x 89 Order unit per piece
801696 Y Branch-off joint 4 x 35mm² Ø 08 - 30 420 x 135 x 112 Order unit per piece
